Features and Benefits

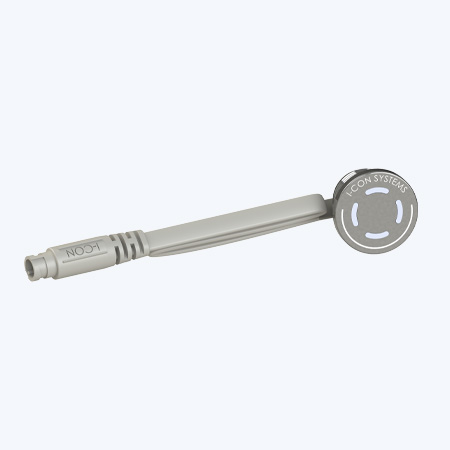

Fully electronic force-activated LED Sensor with no moving parts. The sensor indicates a variety of controller statuses for user feedback and diagnostics. The sensor includes a two-foot lead with a watertight connector. Extension with RJ connector is required and available in various lengths.

• Specifically designed for penal use
• Rugged, polished stainless steel housing with no moving parts makes the unit virtually vandal-proof
• Proven reliability with testing of over 1 million activations
• Unique design allows activation by finger pressure without compromising its sealing integrity
• Proprietary design allowing for no power consumption until touched by the operator
• Ability to be remotely located up to sixty (60) feet from the associated controller
• Telephone-type connectors for quick and easy connection to a controller
• Meets ADA requirements
• IP 68 protection
• Operating temperature ranges from -40° F to 257° F

LED Illumination Indicators

• Illumination colors are based on the Port Type
  • Green - Flush
  • Blue - Lavatory Cold
  • Red - Lavatory Hot
  • Purple - Shower
  • Orange - Custom
• Reducing illumination indicates the remaining run time
• Solid Red after an activation indicates Anti-Water Hammer feature
• Number of illuminated segments after an activation indicates remaining usages before a lockout
• Number of flashing illuminated segments after an activation indicates remaining usages before the daily lockout
• Solid Red indicates the port is unusable due to lockout or lockdown
• Solid Red / White indicates the port is unusable due to daily lockout
• Flashing dim illuminations indicates maintenance mode
